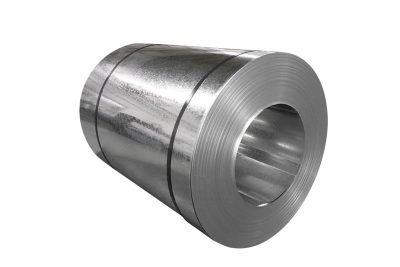

Electro Galvanized Steel (EGI)
Electro galvanized steel (EGI) creates a durable product with anti-fingerprints and scratches. It has good corrosion resistance, processability, weldability, and paintability.
Electro-galvanized steel coated in various thicknesses, painted on one or both sides, can extend the life of the steel and maintain room temperature. This coating is ideal for a facade finish in white goods and architectural applications.
Mechanical Properties
Steel Grade- JIS G3302 SGC340
Yield Point or Proof Stress
245
min. MPa
Tensile Strength
340
min. MPa
Elongation
20
min. %
Product Specification and Size :
Electro Galvanized Steel (EGI)
| Specifications | JIS G3313 SECC | JIS G3313 SECD | JIS G3313 SECE |
| Quality | Commercial Quality | Drawing Quality | Deep Drawing Quality |
| Usage | Furniture, Computer Case, Electronic Parts, Electrical Equipment | Automobile | Automobile |
| Type of Surface Treatment | Chromate Treatment, Phosphate Treatment, Oiling | ||
| Available Size | Thickness: 0.3~1.6mm Width: 850~1580mm Coating Weight: 10-30g/m (single side) Max. Coil Weight: ≦ 20 MT |
||
The table above shows the widest range of product dimensions. For a detailed acceptable order range, please contact Sales & Marketing Division.
Application

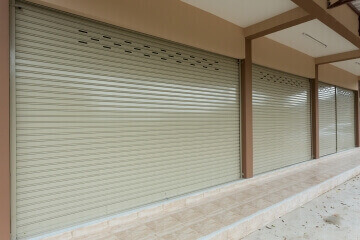

Electro-galvanized steel has suitable appearance and is widely used for interior applications. Electro-galvanized steel is ideal for manufacturing applications and exhibits excellent formability. The typical applications of electro-galvanized steel include acoustic ceiling tiles, door frames, switchboards and automotive panels.
