Products Details

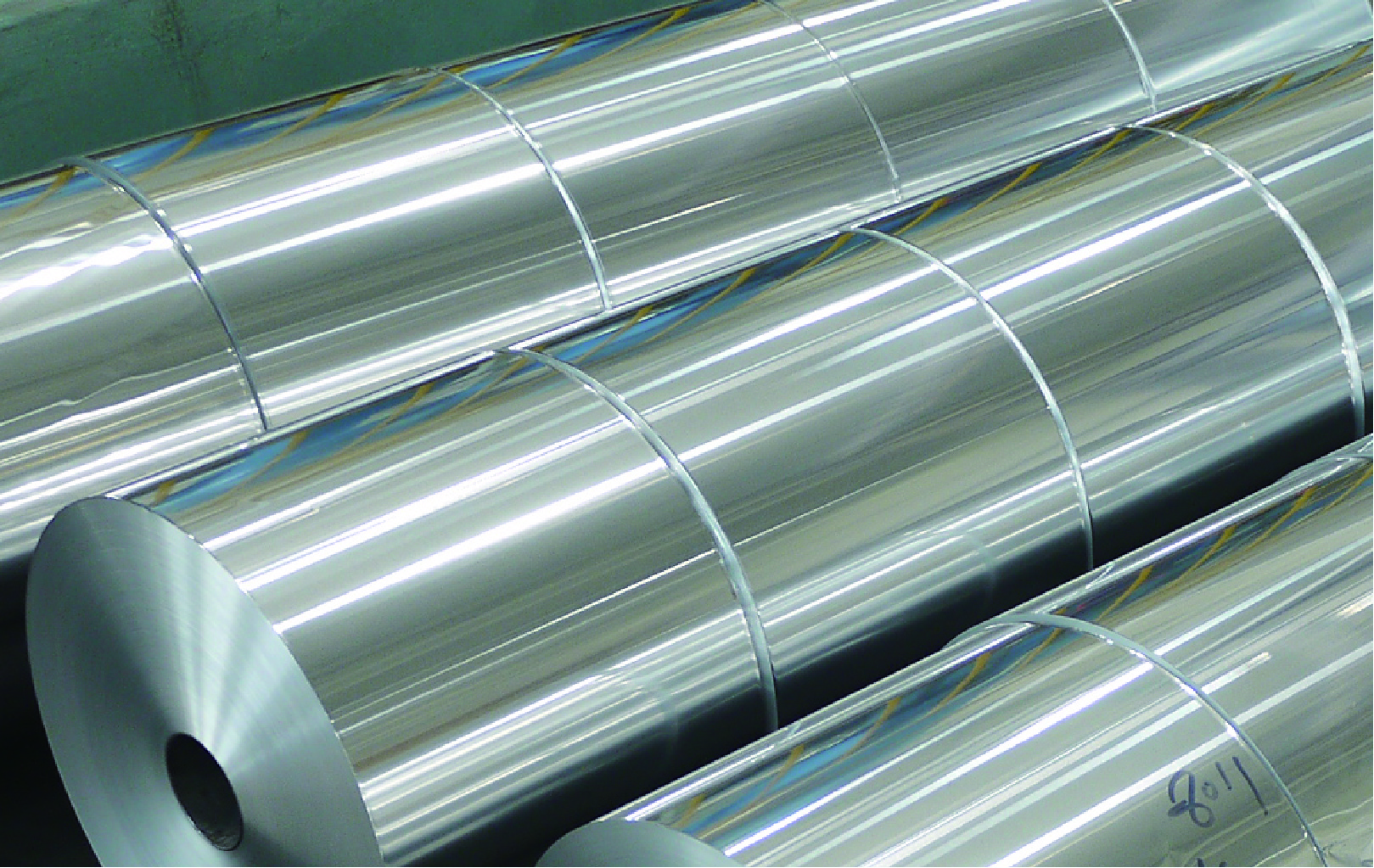

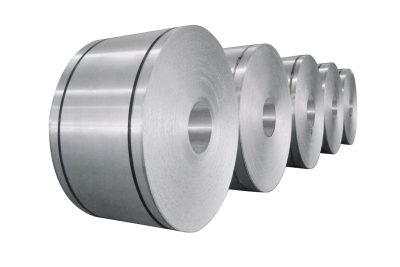

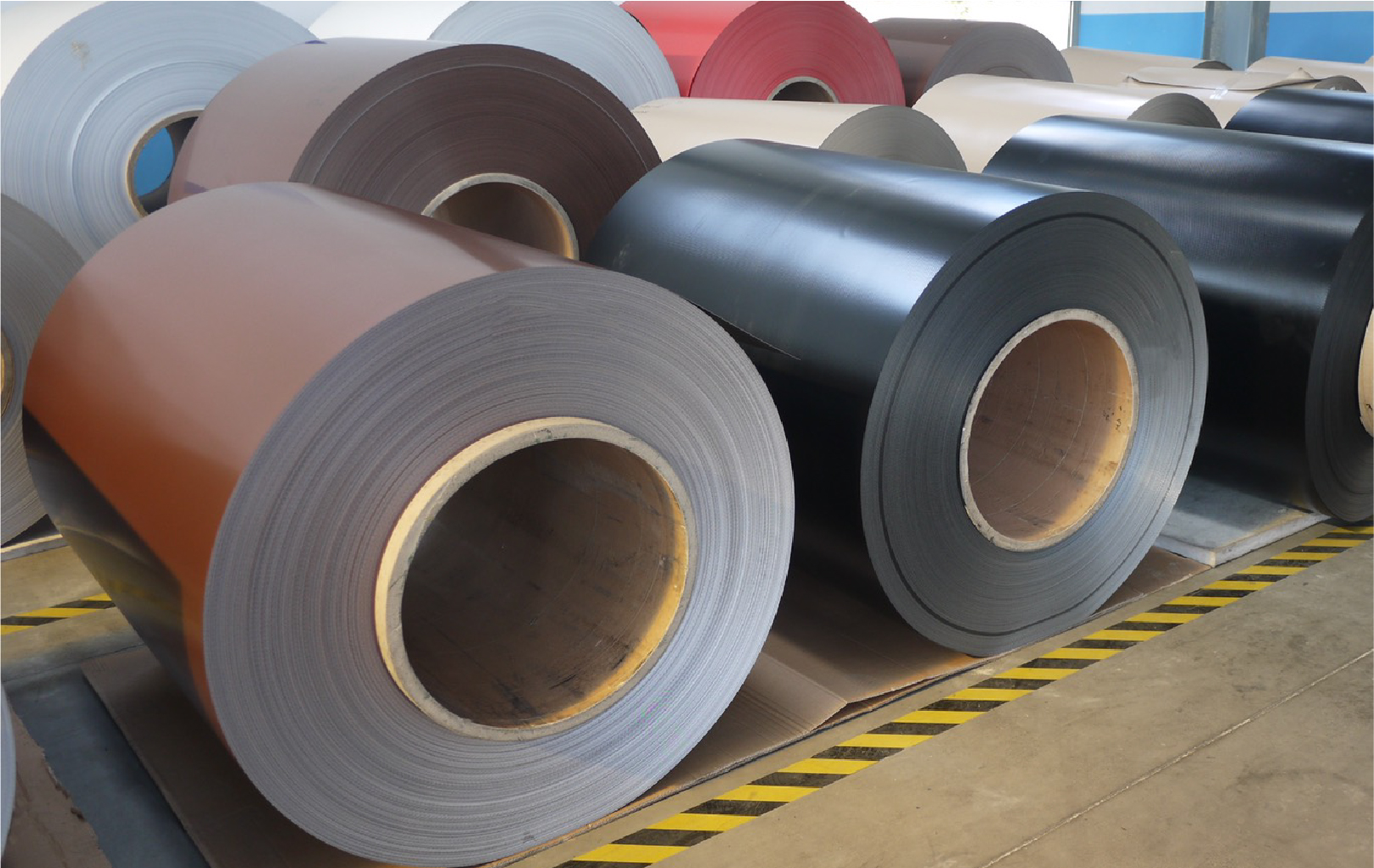

Aluminum Coil / Strip
Aluminum can be recycled an infinite number of times, meaning it is an environmentally friendly metal. POSCO Group produces high-quality aluminum in many shapes, sizes, and grades, so you're always guaranteed to find what you need from us.
Aluminum Coil / Strip is light, strong, and easy to work with. Its variety of thickness makes it ideal for many industrial and home applications, such as signs, airplane parts, and cooking pots. It can be welded with different welding techniques and is easy to be cut, drilled, or sheared.
Mechanical Properties
Tensile Strength, Ultimate
60~460
Mpa
Tensile Strength, Yield
20~460
Mpa
Hardness, Brinell
20~138
Product Specification and Size :
Standard Specification: GB/T 3880, ASTM B209, EN 485
Alloy and Temper
Alloy | Temper |
|---|
1xxx: 1050, 1050A, 1060, 1100 | O, F, H12, H14, H16, H18, H22, H24, H26, H28 |
3xxx: 3003, 3004, 3104, 3005, 3105 | O, F, H12, H14, H16, H18, H22, H24, H26, H28 |
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, F, H22, H24, H26, H28, H32, H34, H36, H38 |
Alloy Designation (For Reference)
Comparison of Alloy Designations for Aluminum Products
Alloy Series | Chinese Standard | American Standard | European Standard |
|---|
1xxx Series | 1050 | - | - |
1xxx Series | 1050A | - | EN AW-1050A |
1xxx Series | 1060 | 1060 | - |
1xxx Series | 1100 | 1100 | - |
3xxx Series | 3003 | 3003 | EN AW-3003 |
3xxx Series | 3004 | 3004 | EN AW-3004 |
3xxx Series | 3005 | 3005 | EN AW-3005 |
3xxx Series | 3105 | 3105 | EN AW-3105 |
5xxx Series | 5005 | 5005 | EN AW-5005 |
5xxx Series | 5052 | 5052 | EN AW-5052 |
5xxx Series | 5754 | 5754 | EN AW-5754 |
5xxx Series | 5083 | 5083 | EN AW-5083 |
5xxx Series | 5086 | 5086 | EN AW-5086 |
5xxx Series | 5182 | - | EN AW-5182 |
5xxx Series | 5049 | - | EN AW-5049 |
5xxx Series | 5251 | - | EN AW-5251 |
5xxx Series | 5454 | 5454 | EN AW-5454 |
Temper Designation (For Reference)
Temper | Definition |
|---|
F | As fabricated (no mechanical property limits specified) |
O | Annealed |
H12、H14、H16、H18 | Strain Hardened, 1/4 Hard、Strain Hardened, 1/2 Hard、Strain Hardened, 3/4 Hard、Strain Hardened, Full Hard |
H22、H24、H26、H28 | Strain Hardened and Partially Annealed, 1/4 Hard、Strain Hardened and Partially Annealed, 1/2 Hard、Strain Hardened and Partially Annealed, 3/4 Hard、Strain Hardened and Partially Annealed, Full Hard |
H32、H34、H36、H38 | Strain Hardened and Stabilized, 1/4 Hard、Strain Hardened and Stabilized, 1/2 Hard、Strain Hardened and Stabilized, 3/4 Hard、Strain Hardened and Stabilized, Full Hard |
Available Size Range
Dimension | Range |
|---|
Thickness | 0.2 ~ 6.0 mm |
Width | 600 ~ 2,600 mm |
* The thickness can be up to 10mm for coil stock (mother coil for cold rolling).
- Standard Width and Length: 1000mm, 1250mm, 1500mm, 1219mm, 1524mm
- Surface Finish: Mill finish, unless otherwise specified
- Surface Protection:
Without paper interleaved for all aluminum coils
With PE/PVC filming on main side (if specified)
- Coil ID
405mm, 505mm, 605mm
- Minimum Order Quantity
5MT per size, total 20MT for one order
Application
Aluminum strip and coil are common materials with many advantages. Aluminum strip and coil have good forming performance and corrosion resistance, used in the transportation, automobile, shipbuilding, instrument, electrical enclosure, etc.
Type | Application |
|---|
Food Packaging | Beverage can end, can tap, cap stock, etc. |
Construction | Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc. |
Transportation | Automobile parts, bus bodies, aviation and shipbuilding and air cargo containers, etc. |
Electronic Appliance | Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc. |
Consumer Goods | Parasols and umbrellas, cooking utensils, sports equipment, etc. |
Other | Military, color coated aluminum sheet |
Chemical Composition (For Reference)
Chemical Composition conforms to Chinese, American and European standard specification
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others:Each | Others:Total | Al: Min. |
|---|
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
1100 | 0.95 Si + Fe | 0.95 Si + Fe | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 |
3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | remainder |
3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | remainder |
3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | remainder |
5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | remainder |
5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | remainder |
5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | remainder |
5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
Related Products

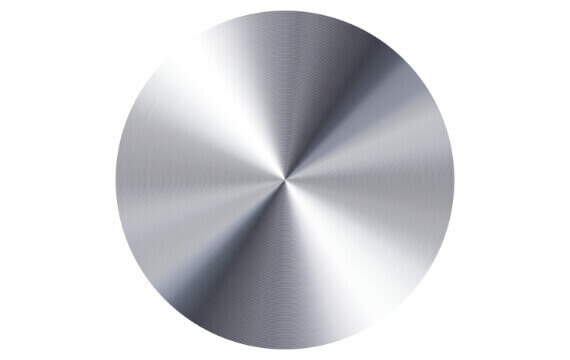

Aluminum Disc

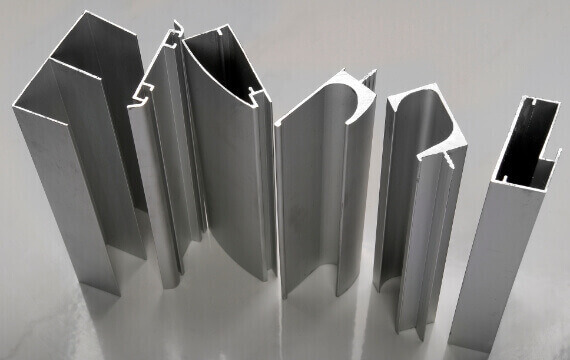

Aluminum Customized Profile
